Flat Elevator Cables Features
Exceptional strength and performance is one of the major features of elevator cables
They are simple to use, handle. Installations are also simple.
It’s well-insulated and safe to use.
Manufacturers use high-quality materials to make elevator cables.
PVC insulation makes it suitable for adverse weather conditions.

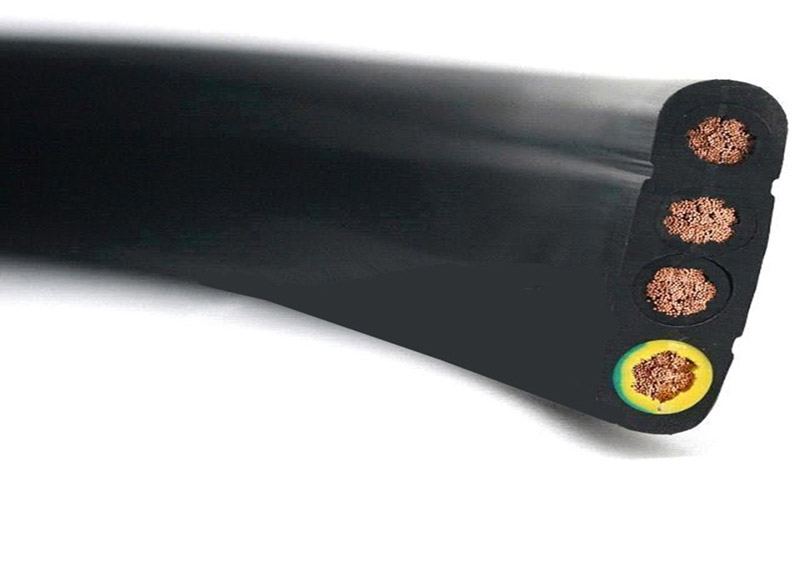

Flat Elevator Cables Structure
| description | Flat elevator cable |
| conductor | 5/6 grade multi-strand copper wire (flexible) |
| insulation | Rubber compound |
| Insulation color | Red, green, yellow, blue |
| sheath | Rubber compound |
| Sheath color | black |
| temperature range | 30 – 60℃ |
| Test voltage | 2000V |
| standard | IEC 60332 |
Flat Elevator Cables Spec:
| Core x conductor cross section | Rated vlotage | Dimensions approximately (wxt) | Weight about | Copper content | Supply length |
| Newton/square millimeter | V / v | mm x mm | Kilogram/km | Kilogram/km | Rice / rice |
| 4G 0.75 | 300/500 | 12.6 X 4.2 | 91 | thirty | 500/1000 |
| 6G 0.75 | 300/500 | 18.4 X 4.2 | 143 | 45 | 500/1000 |
| 8G 0.75 | 300/500 | 23.2 X 4.2 | 175 | 60 | 500/1000 |
| 9G 0.75 | 300/500 | 26.6 X 4.2 | 201 | 67.5 | 500/1000 |
| 12G 0.75 | 300/500 | 33.8 X 4.2 | 260 | 90 | 500/1000 |
| 14G 0.75 | 300/500 | 39.6 X 4.2 | 305 | 105 | 500/1000 |
| 16G 0.75 | 300/500 | 44.4 X 4.2 | 337 | 120 | 500/1000 |
| 18G 0.75 | 300/500 | 49.2 X 4.2 | 384 | 135 | 500/1000 |
| 20G 0.75 | 300/500 | 55.0 X 4.2 | 429 | 150 | 500/1000 |
| 24G 0.75 | 300/500 | 65.5 X 4.2 | 513 | 180 | 500/1000 |
| 24 X 0.75 | 300/500 | 55.2 X 4 | 416 | 180 | 500/1000 |
| 40 X 0.75 | 300/500 | 57.2 X 9.3 | 948 | 309 | 500/1000 |
| 60 X 0.75 | 300/500 | 79.9 X 10.4 | 1457 | 446 | 500/1000 |
| 7 G 1 | 300/500 | 23.2 X 4.3 | 198 | 67 | 500/1000 |
| 9 G 1 | 300/500 | 27.8 X 4.3 | 226 | 86 | 500/1000 |
| 12 G 1 | 300/500 | 35.0 X 4.3 | 295 | 120 | 500/1000 |
| 18 G 1 | 300/500 | 51.0 X 4.3 | 435 | 180 | 500/1000 |
| 20 G 1 | 300/500 | 57.0 X 4.3 | 487 | 200 | 500/1000 |
| 24 G 1 | 300/500 | 68.0 X 4.3 | 583 | 240 | 500/1000 |
Benefits of using Flat Elevator Cables
Practical Solution
Flat elevator cables are a practical solution to today’s market demand for smaller, slimmer wires. These cables are thinner thanks to their flat structure. Flat elevator cables are ideal for scenarios requiring undetectable circuitry due to its low torque attribute and long life.
Space Occupancy
Electronics packaging is becoming increasingly dense day by day. Flat cable takes up only about half the space of round cable due to its shape as compared to its counterpart, round cables.
Decreased Weight
The composite flat-cable architecture is structurally strong enough to eliminate the need for big conductors for strength, in addition to reducing superfluous insulation, fillers, and tapes.
Therefore the copper cross-section can be decreased to the minimum necessary to handle the current load or meet voltage-drop criteria. As a result, the weight of the component is decreased.
Electrical Properties
Electrical characteristics such as impedance, capacitance, inductance, time delay, crosstalk, and attenuation are consistent in the flat elevator cables. This is achieved because the conductor spacing is fixed and the cable geometry is constant.
Larger Current Carrying Capacity
Flat cables have a higher surface-to-volume ratio than round cables. This higher ratio enables them to dissipate heat more efficiently. For a given temperature rise and conductor cross-section, this allows for a higher current level.
The reduced time delay between signals
The conductors inside the flat cables have the exact physical and electrical length, along with a continuous and consistent dielectric. This property reduces the time delays between signals within a given flat cable.
