Flat Festoon Cable Application:
Flat Festoon cables are flat portable cords specifically designed for use in cranes, hoists and festoon cable systems. These Flat Festoon cables are also commonly used where space is at a premium or when extreme flexing is a requirement. HuaDong’s Flat Festoon Cables are suitable for either indoor or outdoor applications operating at -40°C to 105°C and have a line of Grip Seals designed specifically for this unique design.

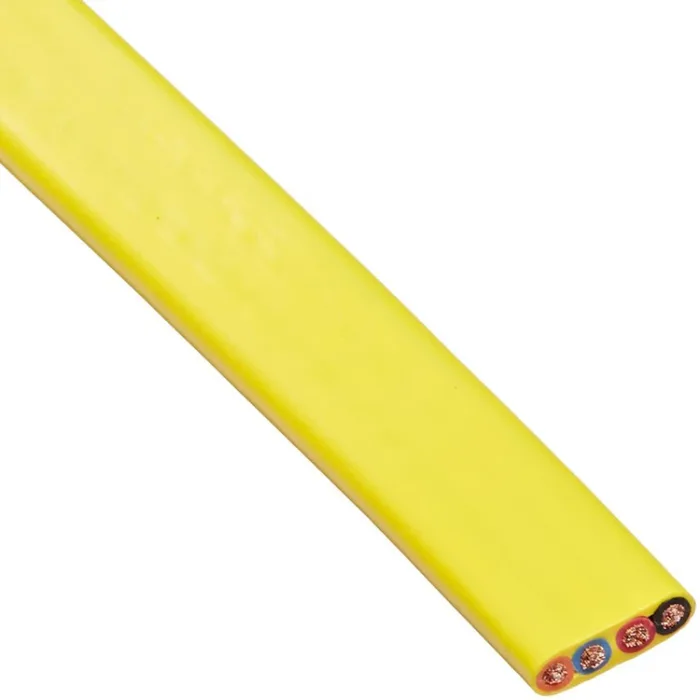

Flat Festoon Cable Structure
Conductor Bare: extra flexible soft annealed copper
Insulation: Colour coded PVC
Jacket: Yellow PVC
Temperature: -40°C to +105°C
Voltage: 600V
Applications: Designed for overhead cranes, hoists, monorails and other industrial applications.
Packaging: 300m spools, Long length Reels cut to length.
Colour Code: Nema standard
Flat Festoon Cable Spec:
| Product Code | Cond. Size | # of Cond. | Cond.Strand | Continuous Duty Rating at 30C Ambient |
Amps ShortTime Rating 60 Min. | Amps ShortTime Rating 30 Min. | Nom. O.D. (Inches) |
Ship.Weight lbs/mft |
| Flat Festoon Cable | 16 | 8 | 65 | 15 | N/A | N/A | .222 x 1.180 | 180 |
| Flat Festoon Cable | 16 | 12 | 65 | 15 | N/A | N/A | .225 x 1.680 | 280 |
| Flat Festoon Cable | 14 | 4 | 41 | 25 | 31 | 32 | .280 x 0.690 | 120 |
| Flat Festoon Cable | 14 | 8 | 41 | 17 | N/A | N/A | .280 x 1.280 | 180 |
| Flat Festoon Cable | 14 | 12 | 41 | 17 | N/A | N/A | .225 x 1.820 | 340 |
| Flat Festoon Cable | 12 | 4 | 65 | 30 | 36 | 40 | .250 x .0800 | 120 |
| Flat Festoon Cable | 12 | 7 | 65 | 21 | N/A | N/A | .280 x 1.250 | 290 |
| Flat Festoon Cable | 12 | 8 | 65 | 20 | N/A | N/A | .280 x 1.400 | 310 |
| Flat Festoon Cable | 10 | 4 | 105 | 40 | 49 | 52 | .276 x 0.880 | 240 |
| Flat Festoon Cable | 8 | 4 | 168 | 50 | 63 | 69 | .360 x 1.230 | 450 |
| Flat Festoon Cable | 6 | 4 | 266 | 75 | 83 | 94 | .470 x 1.505 | 580 |
| Flat Festoon Cable | 4 | 4 | 420 | 95 | 111 | 130 | .550 x 1.720 | 750 |
| Flat Festoon Cable | 2 | 4 | 665 | 130 | 148 | 173 | .580 x 2.020 | 950 |
