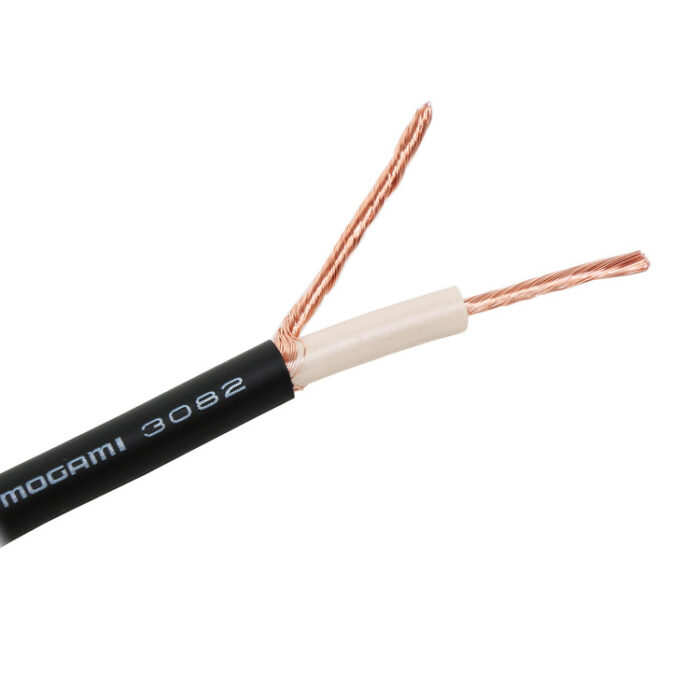

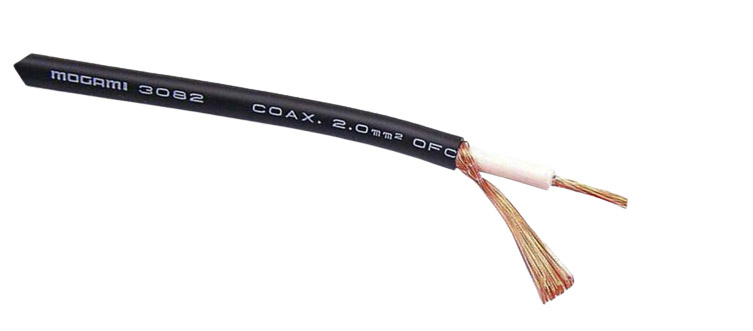

Mogami W3082 Speaker Cable
Mogami W3082 Speaker Cable is paired with a unique oxygen-free copper cored plug in this high-quality cable assembly. The construction of the plug provides a direct soldering interface to the oxygen-free copper plug tip for end-to-end pure copper conduction. With no dissimilar materials in between the cable core and plug tip to alter your sound, you end up with the cleanest possible audio reproduction.
Mogami W3082 Speaker Cable Description:
Mogami W3082 Speaker Cable is paired with a unique oxygen-free copper cored plug in this high-quality cable assembly. The construction of the plug provides a direct soldering interface to the oxygen-free copper plug tip for end-to-end pure copper conduction. With no dissimilar materials in between the cable core and plug tip to alter your sound, you end up with the cleanest possible audio reproduction.
Mogami W3082 Speaker Cable Features:
Professional, studio grade speaker cable
Various lengths available; custom lengths available upon request
Mogami W3082 super flexible studio speaker cable; oxygen-free copper coax configuration offers self-shielding, and effectively produces 14AWG wire for superior signal transfer
plugs; eliminates dissimilar solder tab as found in other plugs replacing it with an oxygen-free copper tab press-fit to the oxygen-free copper core, providing end-to-end oxygen-free copper conductivity
Limited lifetime warranty
Mogami W3082 Speaker Cable Spec:
| Part No. | Mogami W3082 Speaker Cable | |
| Conductor | Details | 80/0.18 OFC (80×33AWG) |
| Size(mm²) | 2.03mm² (Approx. #14AWG) | |
| Insulation | Ov. Dia.(mm) | 4.6Ø (0.181″) |
| Material | PVC | |
| Colors | White | |
| Served Shield | Details | 80/0.18 OFC (80×33AWG) |
| Size(mm²) | 2.03mm² (Approx. #14AWG) | |
| Jacket | Ov. Dia.(mm) | 6.5±0.5ì (0.256±0.0197″ì) |
| Material | Flexible PVC | |
| Color | Black | |
| Roll Size | 100m (328Ft) / 200m (656Ft) / 153m (500Ft) | |
| Weight per 100m Roll | 7.5kg | |
Mogami W3082 Speaker Cable Characteristics
| Part No. | Mogami W3082 Speaker Cable | |
| DC Resistance at 20°C | Inner Conductor | 0.009W/m(0.0027W/Ft) Same value for both internal and outernal/shield conductor) |
| Shield Conductor | ||
| Capacitance at 1kHz, 20°C | 253pF/m(77pF/Ft) | |
| Inductance | 0.4µH/m(0.12µH/Ft) | |
| Electrostatic Noise | 0.2mV Max. | |
| Electromagnetic Noise at 10kHz | 0.2mV Max. | |
| Voltage Breakdown | Must withstand at DC 500V/15sec. | |
| Insulation Resistance | 100000 MW × m Min. at DC 500V, 20°C | |
| Flex Life | 15,000 cycles | |
| Tensile Strength | More than 980N | |
| Emigration | Non-emigrant to ABS resin | |
| Applicable Temperature | -20°C‾ +70°C(-4°F‾ +158°F) | |
| Standard | UL13 CL2 75°C | |
Mogami W3082 Speaker Cable Performance:
Large conductor size of 2.0mm (close to #14AWG) despite small OD of 6.5mm (0.256″). (Same conductor size for both internal and external (shield) conductors.)
Extremely low induction from outside and affection to outside.
Suitable impedance as speaker cable.
Better sound quality than quad nor regular parallel configuration. Now, specify MOGAMI #3082 as world standard of economy and popular professional speaker cable.
Recommended Mogami W3082 Speaker Cable Length
Calculation based on total cable resistance not exceeding 5% of speaker load impedance.
Mogami W3082 is 14AWG, and specs at 27mOhm/foot
4 ohm load – 40 feet
8 ohm load – 75 feet
16 ohm load – 150 feet
You may use the provided lengths as general guidance. If you need to run longer cables with stated loads, it is best to move up in size to the next larger gauge (smaller number) cable.
