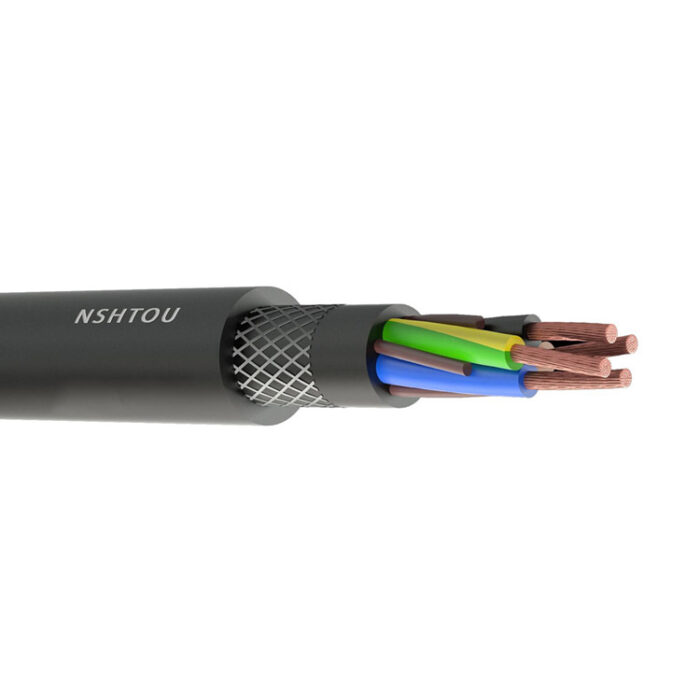

NSHTOU Drum Reeling Cable Description:
NSHTOU Drum Reeling Cable is designed specifically for drum reeling applications. On anything from dockside cranes to automated conveyor systems, (N)SHTÖU-O/J 0.6/1kV Cable copes with incredible workloads. Good UV and weather resistance makes the cable suitable for exposed outdoor installation.
A special low temperature type is available to work down to -40°C. Other sizes and high tensile versions using Kevlar strain relief elements are also available. Medium and high voltage variants are available usually with red Neoprene outer sheaths.

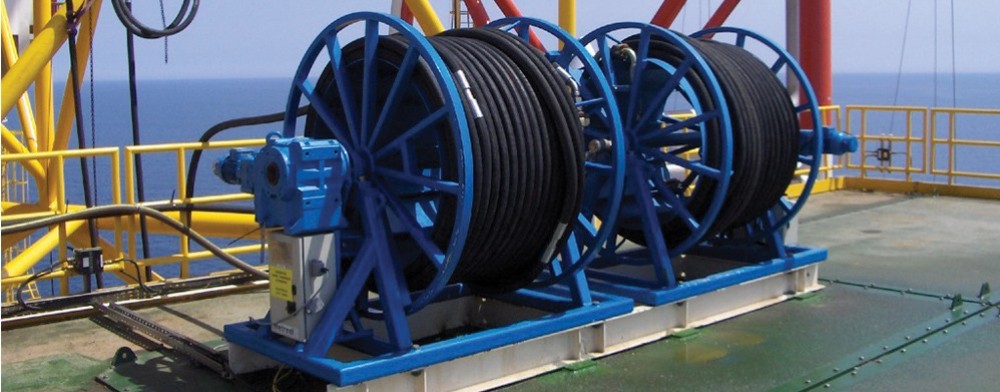

NSHTOU Drum Reeling Cable Application:
NSHTOU Drum Reeling Cable designed for power and signalling mobile connections under severe mechanical stresses (tensile strength and torsion) for heavy duty conditions. abrasion and crushing. (N)SHTÖU-O/J 0.6/1kV Cable is typically used in cable winding reels for harbour cranes. container cranes, conveyors, handling machines and mining and tunnelling equipment.
NSHTOU Drum Reeling Cable Chracteristics
| Voltage Rating (Uo/U) | 0.6/1kV |
| Test Voltage | 4kV |
| Maximum Torsional Stress | ± 25°/m |
| Maximum Working Speed | 180m/min |
| Temperature Rating | Flexing: -25°C to + 90°C Fixed: -40°C to + 90°C |
| Minimum Bending Radius | Fixed: 4 x overall diameter Flexed: 5 x overall diameter |
NSHTOU Drum Reeling Cable Spec:
| Description | Cores | mm² | Colour | Sheath |
| 4 x 1.5mm² NSHTou Drum Reeling Black Neoprene | 4 | 1.5 | Black | Neoprene |
| 5 x 1.5mm² NSHTou Drum Reeling Black Neoprene | 5 | 1.5 | Black | Neoprene |
| 7 x 1.5mm² NSHTou Drum Reeling Black Neoprene | 7 | 1.5 | Black | Neoprene |
| 12 x 1.5mm² NSHTou Drum Reeling Black Neoprene | 12 | 1.5 | Black | Neoprene |
| 18 x 1.5mm² NSHTou Drum Reeling Black Neoprene | 18 | 1.5 | Black | Neoprene |
| 24 x 1.5mm² NSHTou Drum Reeling Black Neoprene | 24 | 1.5 | Black | Neoprene |
| 30 x 1.5mm² NSHTou Drum Reeling Black Neoprene | 30 | 1.5 | Black | Neoprene |
| 42 x 1.5mm² NSHTou Drum Reeling Black Neoprene | 42 | 1.5 | Black | Neoprene |
| 4 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 4 | 2.5 | Black | Neoprene |
| 5 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 5 | 2.5 | Black | Neoprene |
| 7 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 7 | 2.5 | Black | Neoprene |
| 8 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 8 | 2.5 | Black | Neoprene |
| 12 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 12 | 2.5 | Black | Neoprene |
| 16 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 16 | 2.5 | Black | Neoprene |
| 18 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 18 | 2.5 | Black | Neoprene |
| 19 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 19 | 2.5 | Black | Neoprene |
| 24 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 24 | 2.5 | Black | Neoprene |
| 30 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 30 | 2.5 | Black | Neoprene |
| 36 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 36 | 2.5 | Black | Neoprene |
| 42 x 2.5mm² NSHTou Drum Reeling Black Neoprene | 42 | 2.5 | Black | Neoprene |
| 4 x 4.0mm² NSHTou Drum Reeling Black Neoprene | 4 | 4 | Black | Neoprene |
| 5 x 4.0mm² NSHTou Drum Reeling Black Neoprene | 5 | 4 | Black | Neoprene |
| 8 x 4.0mm² NSHTou Drum Reeling Black Neoprene | 8 | 4 | Black | Neoprene |
| 4 x 6.0mm² NSHTou Drum Reeling Black Neoprene | 4 | 6 | Black | Neoprene |
| 5 x 6.0mm² NSHTou Drum Reeling Black Neoprene | 5 | 6 | Black | Neoprene |
| 4 x 10mm² NSHTou Drum Reeling Black Neoprene | 4 | 10 | Black | Neoprene |
| 5 x 10mm² NSHTou Drum Reeling Black Neoprene | 5 | 10 | Black | Neoprene |
| 4 x 120mm² NSHTou Drum Reeling Black Neoprene | 4 | 120 | Black | Neoprene |
| 4 x 150mm² NSHTou Drum Reeling Black Neoprene | 4 | 150 | Black | Neoprene |
| 4 x 16mm² NSHTou Drum Reeling Black Neoprene | 4 | 16 | Black | Neoprene |
| 5 x 16mm² NSHTou Drum Reeling Black Neoprene | 5 | 16 | Black | Neoprene |
| 4 x 25mm² NSHTou Drum Reeling Black Neoprene | 4 | 25 | Black | Neoprene |
| 4 x 35mm² NSHTou Drum Reeling Black Neoprene | 4 | 35 | Black | Neoprene |
| 4 x 50mm² NSHTou Drum Reeling Black Neoprene | 4 | 50 | Black | Neoprene |
| 4 x 70mm² NSHTou Drum Reeling Black Neoprene | 4 | 70 | Black | Neoprene |
| 4 x 95mm² NSHTou Drum Reeling Black Neoprene | 4 | 95 | Black | Neoprene |
