PUR-C-HF EMC Festoon Cable

Name: PUR-C-HF EMC Festoon Cable
Availability: InStock

Voltage Rating (Uo/U): 0.6/1kV
Temperature Rating:
Fixed installation: -50°C to +80°C
Mobile operation: -40°C to +80°C
Minimum Bending Radius:
Fixed Application: 6 x Overall Diameter
Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load: 15 N/mm²
Maximum Torsion: ±25º/m

Inquiry

Send Email

PUR-C-HF EMC Festoon Cable APPLICATION

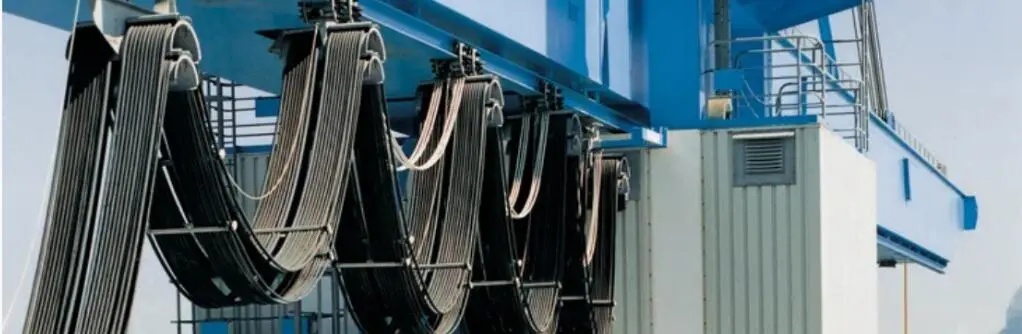

For use as energy and control cable in festoon systems and as a drag chain cable. PUR sheath offers protection against hydrolysis, solvents, alkalines and oils. Copper screen provide protection against electromagnetic effects

PUR-C-HF EMC Festoon Cable CHARACTERISTICS

Voltage Rating (Uo/U)	0.6/1kV
Temperature Rating	Fixed installation: -50°C to +80°C
Temperature Rating	Mobile operation: -40°C to +80°C
Minimum Bending Radius	Fixed Application: 6 x Overall Diameter
Minimum Bending Radius	Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load	15 N/mm²
Maximum Torsion	±25º/m
Travel Speed	Festoon Systems Up to 200m/min
	Reeling: Up to 60m/min horiz. / Up to 200m/min vertical
	Chain Systems: Up to 200m/min vertical

PUR-C-HF EMC Festoon Cable CONSTRUCTION

Conductor	Class 5 flexible stranded copper
Insulation	Halogen free compound
Lay Up	Central textile strength member, cores laid up in concentric layers
Inner Sheath	PUR-HF (Polyurethane, halogen free flame retardant)
Screen	TCWB (Tinned copper wire braid) coverage min. 80%
Outer Sheath	PUR-HF (Polyurethane Halogen Free, flame retardant)
Core Identification	4 Core: Green/Yellow Brown Black Grey 5 Core: Green/Yellow Blue Brown Black Grey From 6 cores: white cores with black numbers

PUR-C-HF EMC Festoon Cable STANDARDS

Generally to IEC 60502, IEC 60228, DIN VDE 0293-308, DIN VDE 0472 501-503/508, DIN VDE 0472-303/401/402/602/615 DIN VDE 0250-1 IEC 60332-1 HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
