PUR-HF TROMMEL LV Reeling Cable
Voltage Rating (Uo/U)：0.6/1kV
Temperature Rating：
Fixed installation: -50°C to +90°C
Mobile operation: -40°C to +90°C
Minimum Bending Radius：
Fixed Application: 6 x Overall Diameter
Mobile Applications: 8 x Overall Diameter
Maximum Tensile Load：20 N/mm²
Maximum Torsion：±25º/m
Travel Speed：
Festoon Systems Up to 200m/min
Reeling Application: Up to 200m/min horiz.

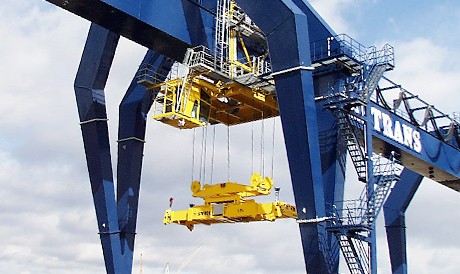

PUR-HF TROMMEL LV Reeling Cable APPLICATION
PUR-HF TROMMEL LV Reeling Cable for use under high mechanical stresses, torsion, tension and torque. Suitable as vertical drum reeling cable under moderate mechanical stresses. A strength member has been integrated to increase tensile load, acceleration and speed. PUR sheath offers protection against hydrolysis, solvents, alkalines and oils.
PUR-HF TROMMEL LV Reeling Cable CHARACTERISTICS
| Voltage Rating (Uo/U) | 0.6/1kV |
| Temperature Rating | Fixed installation: -50°C to +90°C |
| Mobile operation: -40°C to +90°C | |
| Minimum Bending Radius | Fixed Application: 6 x Overall Diameter |
| Mobile Applications: 8 x Overall Diameter | |
| Maximum Tensile Load | 20 N/mm² |
| Maximum Torsion | ±25º/m |
| Travel Speed | Festoon Systems Up to 200m/min |
| Reeling Application: Up to 200m/min horiz. |
PUR-HF TROMMEL LV Reeling Cable CONSTRUCTION
| Conductor | Class 5 flexible stranded copper |
| Insulation | LSZH (Low Smoke Zero Halogen) |
| Lay Up | Central textile strength member, cores laid up in concentric layers |
| Inner Sheath | PUR-HF (Polyurethane, halogen free flame retardant) |
| Braiding | Anti-twisting Textile braid |
| Outer Sheath | PUR-HF (Polyurethane, halogen free flame retardant) |
| Core Identification | 4 Core: Green/Yellow Brown Black Grey 5 Core: Green/Yellow Blue Brown Black Grey From 6 cores: white cores with black numbers |
PUR-HF TROMMEL LV Reeling Cable STANDARDS
IEC 60228, DIN VDE 0293-308, IEC 60502 & VDE 0250, DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402, 602, 303, 615, DIN VDE 0250-1 and IEC 60502, IEC 60332-1 HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
