PUR Spreader LV Reeling Cable
Conductor: Class 5 flexible stranded copper
Insulation: Halogen free compound based on polyester
Lay Up: Central Aramid strength member, cores in concentric layers
Inner Sheath: PUR-HF (Halogen Free, flame retardant Polyurethane)
Braiding: Anti-twisting element – Aramid yarns braiding

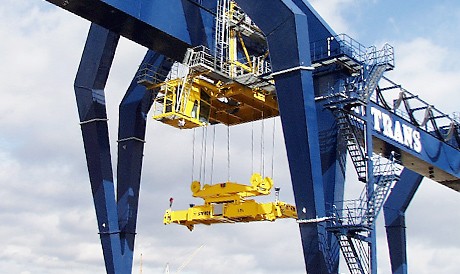

PUR Spreader LV Reeling Cable APPLICATION:
PUR Spreader LV Reeling Cable under high mechanical stresses, torsion, tension and torque. Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed. PUR sheath offers a very good protection against hydrolysis, solvents, alkalines and oils.
PUR Spreader LV Reeling Cable CHARACTERISTICS
| Voltage Rating (Uo/U) | 0.6/1kV |
| Temperature Rating | Fixed installation: -50°C to +90°C |
| Mobile operation: -40°C to +90°C | |
| Minimum Bending Radius | Fixed Application: 6 x Overall Diameter |
| Mobile Applications: 8 x Overall Diameter | |
| Maximum Tensile Load | 30 N/mm² |
| Maximum Torsion | ±25º/m |
| Travel Speed | Festoon Systems Up to 240m/min |
| Reeling Application: Up to 240m/min horiz. / Up to 180m/min vertical |
PUR Spreader LV Reeling Cable CONSTRUCTION
| Conductor | Class 5 flexible stranded copper |
| Insulation | Halogen free compound based on polyester |
| Lay Up | Central Aramid strength member, cores in concentric layers |
| Inner Sheath | PUR-HF (Halogen Free, flame retardant Polyurethane) |
| Braiding | Anti-twisting element – Aramid yarns braiding |
| Outer Sheath | PUR-HF (Halogen Free, flame retardant Polyurethane) |
| Black or Yellow or Orange | |
| Core Identification | From 6 cores: white cores with black numbers |
PUR Spreader LV Reeling Cable STANDARDS
IEC 60228, DIN VDE 0293-308, IEC 60502 & VDE 0250, DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402, 602, 303, 615, DIN VDE 0250-1, IEC 60502, IEC 60332-1 HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
