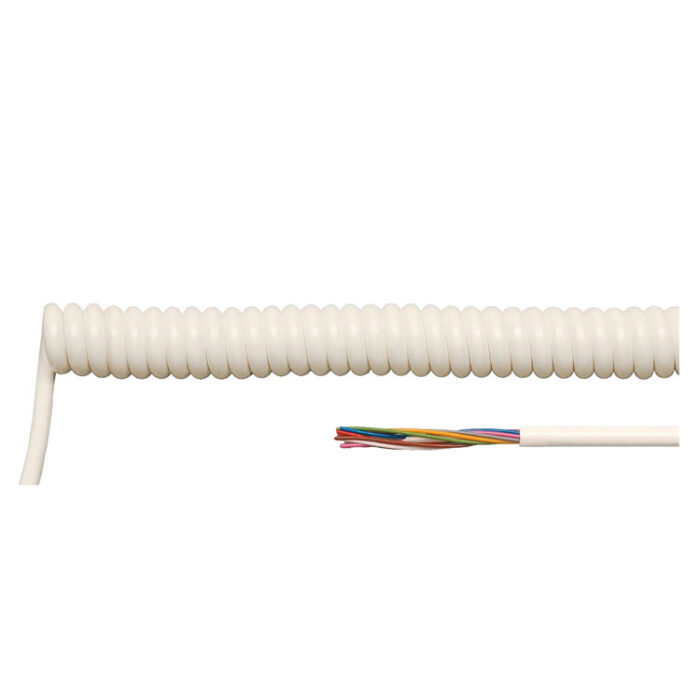

PVC SPIRAL CABLES

Name: PVC SPIRAL CABLES
Availability: InStock

Conductor: Bare copper conductors according to DIN VDE 0295 and IEC 60228 class 5
Conductor Sizes: 0.5mm2to 1.5mm2, 2 to 5 cores
Core Insulation: PVC core insulation
Core Color Code: According to VDE 0293 or DIN 47100
Sheath: PVC outer sheath
Sheath Color: Black, White or Grey

Inquiry

Send Email

PVC Spiral Cables Structure

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
Core insulation: PVC
Core identification acc. to DIN VDE 0293-308
Protective conductor: starting with 3 cores
Cores stranded in layers
Outer sheath: PVC

PVC Spiral Cables Application

Lighting industry
Data installations
Shops
Telecommunication

PVC Spiral Cables Technical data

Temperature range	flexing -5°C to +70°C
Nominal voltage:	H03VV-F U0/U 300/300 V H05VV-F U0/U 300/500 V
Test voltage	2000 V
Expansion ratio	1:3
Straight ends	in each case 200 mm

PVC Spiral Cables Spec:

Description & No. Conductors x cross-sec. mm2	Spiral Length unexpanded	Cable Ø (mm)	Spiral Outer Ø (mm)	Cop. Weight kg/km	AWG
PVC Spiral Cable 2 x 0.75	200 mm	6.2	21.4	34.6	18
PVC Spiral Cable 2 x 0.75	400 mm	6.2	21.4	63.4	18
PVC Spiral Cable 2 x 0.75	600 mm	6.2	21.4	92.2	18
PVC Spiral Cable 2 x 0.75	800 mm	6.2	21.4	121	18
PVC Spiral Cable 2 x 0.75	1000 mm	6.2	21.4	149.8	18
PVC Spiral Cable 2 x 0.75	1200 mm	6.2	21.4	178.6	18
PVC Spiral Cable 2 x 0.75	1400 mm	6.2	21.4	207.4	18
PVC Spiral Cable 3 x 0.75	200 mm	6.6	22.2	51.9	18
PVC Spiral Cable 3 x 0.75	400 mm	6.6	22.2	95.1	18
PVC Spiral Cable 3 x 0.75	600 mm	6.6	22.2	138.3	18
PVC Spiral Cable 3 x 0.75	800 mm	6.6	22.2	181.5	18
PVC Spiral Cable 3 x 0.75	1000 mm	6.6	22.2	224.7	18
PVC Spiral Cable 3 x 0.75	1200 mm	6.6	22.2	267.8	18
PVC Spiral Cable 3 x 0.75	1400 mm	6.6	22.2	311.1	18
PVC Spiral Cable 2 x 1.0	200 mm	6.6	22.2	43.2	17
PVC Spiral Cable 2 x 1.0	400 mm	6.6	22.2	65.3	17
PVC Spiral Cable 2 x 1.0	600 mm	6.6	22.2	122.8	17
PVC Spiral Cable 2 x 1.0	800 mm	6.6	22.2	161.3	17
PVC Spiral Cable 2 x 1.0	1000 mm	6.6	22.2	199.7	17
PVC Spiral Cable 2 x 1.0	1200 mm	6.6	22.2	238.1	17
PVC Spiral Cable 2 x 1.0	1400 mm	6.6	22.2	276.5	17
PVC Spiral Cable 2 x 1.5	200 mm	7.7	26.4	69.6	16
PVC Spiral Cable 2 x 1.5	400 mm	7.7	26.4	127	16
PVC Spiral Cable 2 x 1.5	600 mm	7.7	26.4	185.6	16
PVC Spiral Cable 2 x 1.5	800 mm	7.7	26.4	243.6	16
PVC Spiral Cable 2 x 1.5	1000 mm	7.7	26.4	301.6	16
PVC Spiral Cable 2 x 1.5	1200 mm	7.7	26.4	359.6	16
PVC Spiral Cable 2 x 1.5	1400 mm	7.7	26.4	417.6	16
PVC Spiral Cable 3 x 1.5	200 mm	8.5	29	103.2	16
PVC Spiral Cable 3 x 1.5	400 mm	8.5	29	189.2	16
PVC Spiral Cable 3 x 1.5	600 mm	8.5	29	275.2	16
PVC Spiral Cable 3 x 1.5	800 mm	8.5	29	361.2	16
PVC Spiral Cable 3 x 1.5	1000 mm	8.5	29	447.2	16
PVC Spiral Cable 3 x 1.5	1200 mm	8.5	29	533.2	16
PVC Spiral Cable 3 x 1.5	1400 mm	8.5	29	619.2	16
