Servo Motor Cable
HuaDong Cables’ Servo Motor cable portfolio cover cables from both the Veriflex range and our wider industrial range. These cables are designed for the quick connection of Computer Numerical Control (CNC) machines, intelligent servo drives and temperature control units. Their industrial applications cover mills, automation plants, and other manufacturing instances where these control cables are invaluable.
Servo Motor Cable Description:
HuaDong Cables’ Servo Motor cable portfolio cover cables from both the Veriflex range and our wider industrial range. These cables are designed for the quick connection of Computer Numerical Control (CNC) machines, intelligent servo drives and temperature control units. Their industrial applications cover mills, automation plants, and other manufacturing instances where these control cables are invaluable.
LOW SMOKE ZERO HALOGEN Servo Motor Cable
European servo cables are generally manufactured with PVC sheathing but in recognition of the requirements and specification preferences of the other market, HuaDong Cables have developed the 2XSLCH Servo Motor Cable to provide the precise performance with an LSZH low smoke zero halogen sheathing instead. The 2XSLCH cable is suitable for external installation (UV resistant) but not recommended for direct burial, as well as being suitable for installation in trays or in trunking.

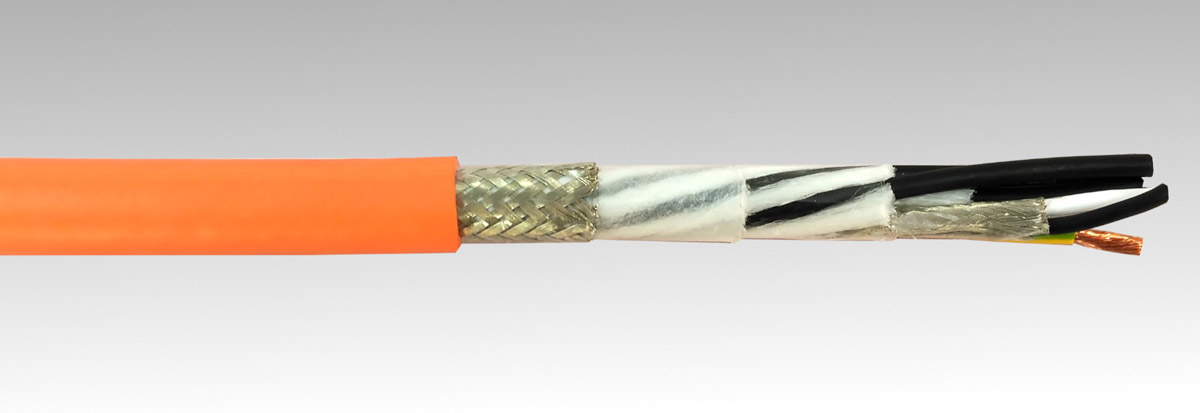

Servo Motor Cable Structure
| SERVO CABLE CP | VERIFLEX 2XSLCH LSZH SERVO CABLE | |||
| VOLTAGE | 0.6/1kV | |||
| CONDUCTOR | Class 6 Extra Flexible Copper | Class 5 Flexible Stranded Copper | ||
| INSULATION | PP (Polypropylen) | XLPE (Cross-linked Polyethylene) | ||
| SEPARATOR | – | PET (Polyester Tape) | ||
| SCREEN 1 | – | Al/PET (Aluminium Polyester Tape) | ||
| SCREEN | TCWB (Tinned Copper Wire Braid) | |||
| OUTER SHEATH | PUR (Polyurethane) | LSZH (Low Smoke Zero Halogen) | ||
Why Use Servo Motor Cable
Servo systems generate disruptive electrical noise in the environment around them. The noise emitted can affect other devices such as electronic equipment, commercial grade Ethernet systems and instrumentation wiring. Servo motor cables combat that by utilizing grounding, shielding & insulation.
Grounding Configuration and Termination
An improper cable connected to servos creates noise-related issues within the system and improperly terminated cables can release captured noise current. Our servo motor cables offer a ground conductor of equal to the size of the power conductors as well as braided shielding for better noise isolation.
Proper Shielding to Contain Noise
To avoid noise problems, servo motor cable needs to be effectively shielded. Research suggests that shielding systems that include a combination foil & braid types are the most appropriate for VFD applications.
