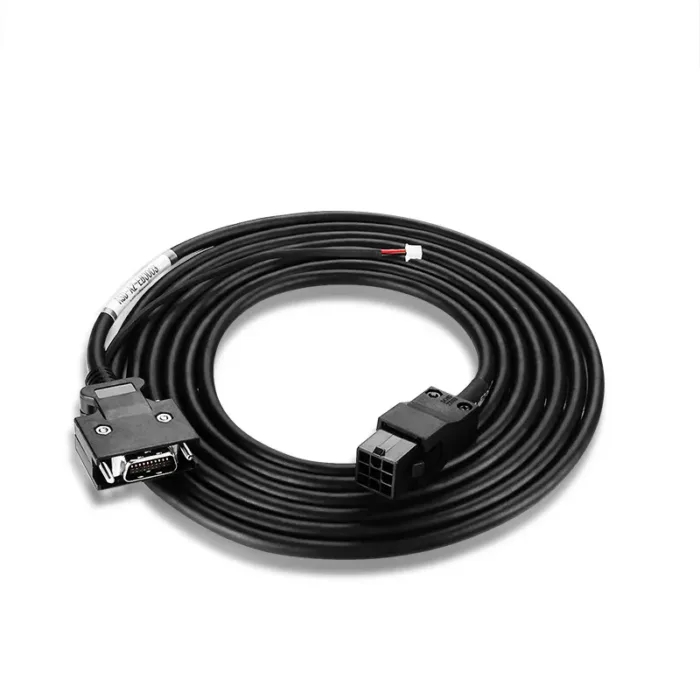

Servo Motor Encoder Cable Details
| code | Multi-Core |
| Color | Green |
| Conductor | copper |
| MOQ | 300M/Roll |
| Core | Multi |
| Nominal voltage U0/U | power cores 4 kV signal cores 1 kV |
| Temperature (°C) – flexing | -20°C to +60°C |
| Temperature (°C) – fixed | -50°C to +80°C |
Servo Motor Encoder Cable Product Mix
| conductor | Bare copper, extra fine wire conductor |
| acc. to DIN VDE 0295 cl.6 | |
| Wire Color | Muilt-core |
| Temp | flexing 0°C to +60°C |
| fixed installation -20°C to +80°C | |
| Insulation | PP |
| Screen | Complete shield of tin-plated copper |
| braiding, coverage approx. 80% | |
| Sheath | PUR |
| Sheath colour | Green |
| Packaging | Meter marking |
Servo Motor Encoder Cable Technical Parameter
| Test voltage : | power cores 4 kV |
| signal cores 1 kV | |
| Temperature range : | flexing -20°C to +60°C |
| fixed installation -50°C to +80°C | |
| Structure / colour code: | (2x2x0,18) |
| BK, BN, RD, OG | |
| (4x2x0,18) | |
| BK+BN, RD+OG, YE+GN, BU+VT | |
| (8x2x0,18) | |
| BK+BN, RD+OG, YE+GN, BU+VT, | |
| GY+WH, WH/BK+WH/BN, | |
| WH/RD+WH/OG, WH/YE+WH/GN | |
| (12×0,22) | |
| BK, BN, RD, OG, YE, GN, BU, | |
| VT, GY, WH, WH/BK, WH/BN | |
| (4x2x0,34+4×0,5) | |
| RD+OG, YE+GN, BU+VT, BK+BN, | |
| WH/RD, WH/YE, WH/BU, WH/BK | |
| (3x(2×0,14)+2x(0,5)) | |
| RD+OG, YE+GN, BK+BN, BK, RD | |
| (3x(2×0,14)+2×0,5+4×0,14) | |
| RD+OG, YE+GN, BK+BN, | |
| BN/RD, BN/BU, | |
| GY, BU, WH/YE, WH/BK | |
| (3x(2×0,14)+2×0,5+4×0,14+4×0,22) | |
| RD+OG, YE+GN, BK+BN, | |
| BN/RD, BN/BU, | |
| GY, BU, WH/YE, WH/BK, | |
| BN/YE, BN/GY, GN/BK, GN/RD |
