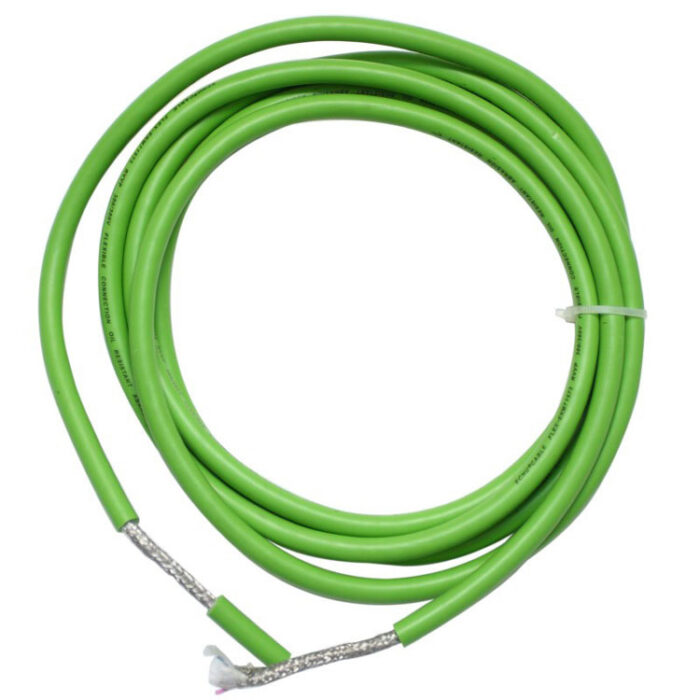

Shielded Servo Cable Description:
Shielded servo cable with PUR outer sheath for highly dynamic power chain application.A wide range of motor, encoder and feedback cables suitable for fixed and constant flexing applications. Servo Motor Cables are especially suitable for moving connections in power chains, robots, because of their outstanding properties. They are combined as signalling and supply cables and offer space and weight savings with optimal operational reliability.
Connecting cable between servo controller and motor In power chains or moving machine parts. For use in assembling & pick-and-place machinery particularly in wet areas of machine tools and transfer lines assembly lines, production lines, in all kinds of machines for indoor and outdoor use.
Shielded Servo Cable Features
Dynamic power chain performance:
Acceleration up to 50 m/s². Travel speeds up to 5 m/s. Travel distances up to 100 m. Designed for 10 million alternating bending cycles and horizontal travel distances up to 100 meter
Flammability:
UL/CSA: VW-1, FT1, IEC/EN: 60332-1-2, Halogen-free materials, Abrasion and notch-resistant, Oil-resistant
Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: polypropylene (PP)
Individual design depending on the item:
Power cores without or with one or two individually shielded control core pairs twisted together in short lay lengths;
Power cores with control core triplet twisted together in short lay lengths. Non-woven wrapping, Tinned-copper braiding, PUR outer sheath, orange (RAL 2003).
Shielded Servo Cable Spec:
| TYPE | SPEC. |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×1.0+(2×0.5) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×1.5+(2×0.5) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×1.5+(2×1.0) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×2.5+(2×1.0) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×4.0+(2×1.0) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×6.0+(2×1.0)) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×10.0+(2×1.0) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×16.0+(2×1.0) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×25.0+(2×1.0) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×1.5+(2×0.75) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×2.5+(2×0.75) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×4.0+(2×0.75) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×6.0+(2×0.75) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×10.0+(2×0.75) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×16.0+(2×0.75) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×25.0+(2×0.75) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×1.5+(2×1.5) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×2.5+(2×1.5) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×4.0+(2×1.5) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×6.0+(2×1.5) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×10.0+(2×1.5) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×16.0+(2×1.5) |
| SERVO-CY(RVVYP Motor Cable For Fixed Installation use) | 4×25.0+(2×1.5) |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×1.0+(2×0.5)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×1.5+(2×0.5)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×1.5+(2×1.0)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×2.5+(2×1.0)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×4.0+(2×1.0)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×6.0+(2×1.0)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×10.0+(2×1.0)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×16.0+(2×1.0)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×25.0+(2×1.0)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×1.5+(2×0.75)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×2.5+(2×0.75)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×4.0+(2×0.75)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×6.0+(2×0.75)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×10.0+(2×0.75)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×16.0+(2×0.75)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×25.0+(2×0.75)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×1.5+(2×1.5)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×2.5+(2×1.5)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×4.0+(2×1.5)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×6.0+(2×1.5)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×10.0+(2×1.5)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×16.0+(2×1.5)P |
| SERVO-CY-FD(EKM71573 Motor-Supply Control Cable For Flexing istallation use) | 4×25.0+(2×1.5)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×1.0+(2×0.5)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×1.5+(2×0.5)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×1.5+(2×1.0)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×2.5+(2×1.0)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×4.0+(2×1.0)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×6.0+(2×1.0)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×10.0+(2×1.0)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×16.0+(2×1.0)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×25.0+(2×1.0)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×1.5+(2×0.75)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×2.5+(2×0.75)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×4.0+(2×0.75)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×6.0+(2×0.75)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×10.0+(2×0.75)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×16.0+(2×0.75)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×25.0+(2×0.75)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×1.5+(2×1.5)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×2.5+(2×1.5)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×4.0+(2×1.5)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×6.0+(2×1.5)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×10.0+(2×1.5)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×16.0+(2×1.5)P |
| SERVO-CY-FD-PUR( EKM715973 Motor-Supply Control Cable For Flexing istallation use) | 4×25.0+(2×1.5)P |
